In some of my articles, I have made mention of implementing SPF, DMARC and DKIM records for your Exchange environment but many ask the question on how do you setup DKIM for Exchange 2016 or Exchange 2019? (Applies to 2013 as well).

There are a couple of steps involved to get this working. In order to get DKIM setup we need to do the following:

  • Download DKIM-Exchange from GitHub or from a company as a paid version.
  • Run the installation (Note here, does not work on Windows 2019 Server Core).
  • Generate and save the public and private key.
  • Create a TXT record externally with the information from the tool.
  • Wait for DNS to replicate and then test.

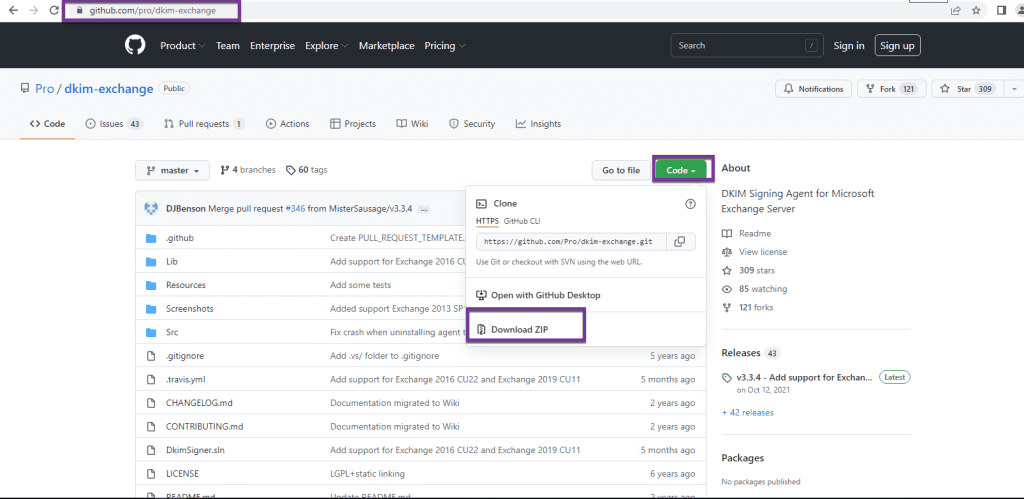

You can head over to the following url and download the files for installing DKIM-Exchange:

  • github.com/pro/dkim-exchange
Add extra security to stop email spam by implementing dkim
Add extra security to stop email spam by implementing DKIM 1

Once you have downloaded the ZIP file, extract it on an Exchange server.

Next, open up the Exchange Management Shell (EMS) and navigate to that folder where you extracted the ZIP file to.

Now launch “Install.PS1” from the EMS and follow the prompts.

Part of the installation tells you to launch the application before exiting it. If you head over to the following location, you can open up the Application:

  • C:\Program Files\Exchange DkimSigner\configuration.DkimSigner (Shown Below)
Add extra security to stop email spam by implementing dkim

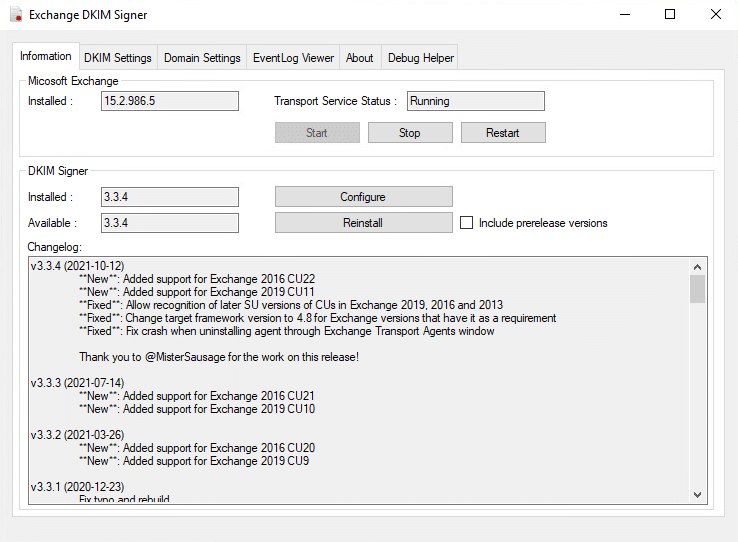

Once you have launched it, you will see a window as shown below:
Add extra security to stop email spam by implementing dkim

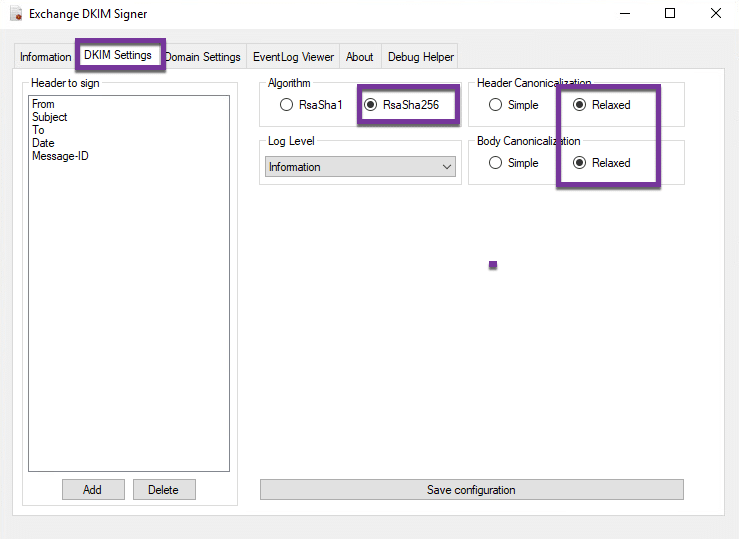

If you click on the configure button in the middle, you can set the priority for the transport agent. Leave it at 12 or at the end if you have more transport agents. Next click on the DKIM Settings tab as shown below:
Add extra security to stop email spam by implementing dkim
Add extra security to stop email spam by implementing DKIM 2

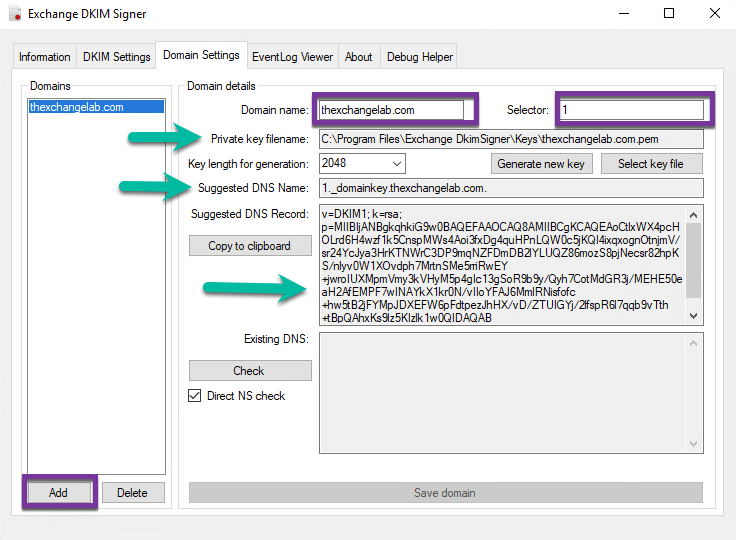

Ensure that you have the Algorithm set as shown above and both Canonicalization set to “Relaxed”. Click on Save configuration at the bottom and then click on Domain settings tab as shown below:

Add extra security to stop email spam by implementing dkim
Add extra security to stop email spam by implementing DKIM 3

In this section, you will need to delete, example and example 1 on the left and then you need to Add your domain. In my example this is my lab called thexchangelab.com.

I selected “Generate new key” and saved it to the default location where “Private key filename” is shown. I used the Suggested DNS record and added in a TXT record of “1._domainkey” with the value of the “v=DKIM1;…..”

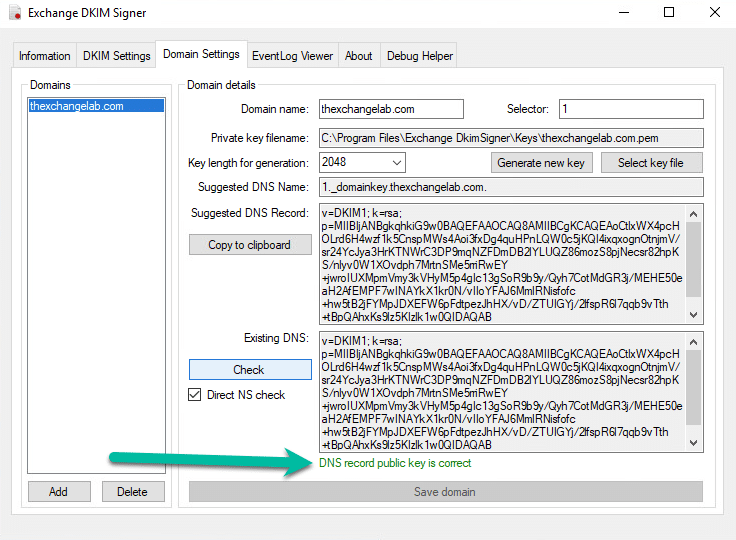

Once DNS has replicated, you can then click on the Check button and you should get a match as shown below:

Add extra security to stop email spam by implementing dkim
Add extra security to stop email spam by implementing DKIM 4

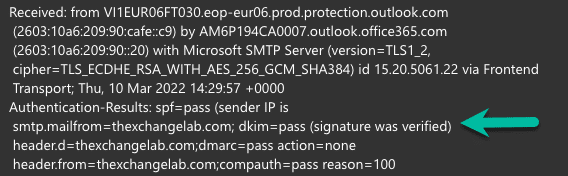

The next step is to test, I sent an email to my gmail account and looked at the header, here is what was shown:

Add extra security to stop email spam by implementing dkim
Add extra security to stop email spam by implementing DKIM 5

Signature was verified and doing a message header check further, I stopped receiving the error that no signature was detected or invalid signature.

Hope it helps.
